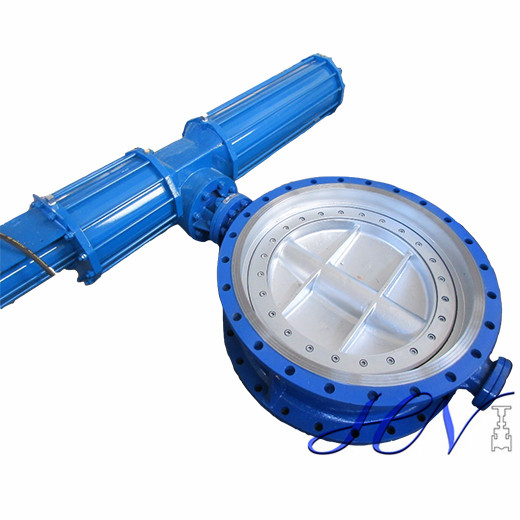

API 609 Metal Seated Tricentric Butterfly Valve Detail
Design standard: API 609.
Body material: A216 WCB.
Nominal diameter: 36".
Pressure: CL600.
End connection: Flange.
Face to face: ASME B16.10.
Working temperature: -29℃~+250℃.
Mode of operation: Pneumatic.
Test and inspection: API 598.
Finished Surface: Painting.
Flange Type Pneumatic Tricentric Butterfly Valve Product Range
Standards: API, ANSI, BS, DIN and JIS.
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 2"~120" (DN50~DN3000).
End connection: Wafer, Lug, Flanged, Butt-welding
Pressure range: CL150~CL600(PN16~PN100).
Operation: Wrench, Gearbox, Electric, Pneumatic
Working temperature: -46℃~+200℃.
