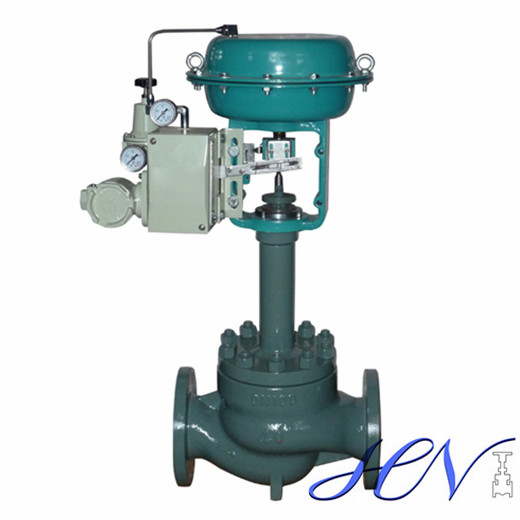

Bellow Type Pneumatic Steam Flanged Diaphragm Control Valve

Availability:
Quantity:

Bellow Type Pneumatic Control Valve Detail

Design standard: DIN 3356.

Body material: A216 WCB.

Nominal diameter: DN100.

Pressure: PN40.

End connection: RF.

Face to face: DIN 3202.

Working temperature:-20℃~+350℃.

Mode of operation: Diaphragm Type Actuator Operated.

Test and inspection: DIN3230, EN12266-1.

Finished Surface: Painting.

Pneumatic Steam Diaphragm Control Valve Product Range

Standards: API, ANSI, BS, DIN, JIS and GOST.

Body Material: Carbon steel, Stainless steel, Alloy steel.

Normal diameter: 1/2"~24" (DN15~DN600).

End connection: BW, Flanged

Pressure range: CL150~CL600 (PN16~PN100).

Operation: Handwheel, Gearbox, Electric, Pneumatic, Self-acting.

Working temperature: -46℃~+560℃.
