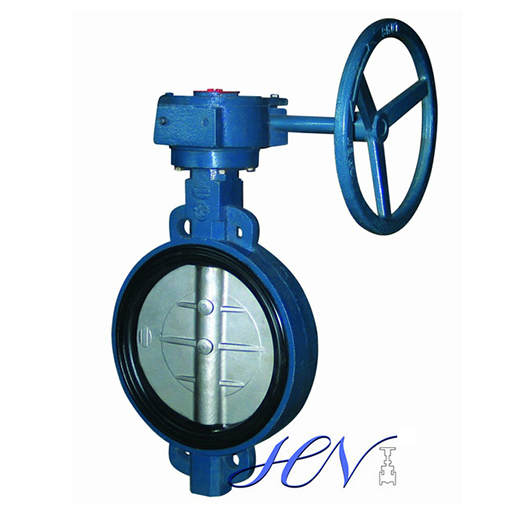

Cast Iron Butterfly Valve Detail
Design standard: API 609.
Body material: GG25.
Nominal diameter: 10" (DN300).
Pressure: CL150 (PN20).
End connection: Wafer.
Face to face: API 609.
Working temperature: -15℃~+140℃ .
Mode of operation: Worm Gear.
Test and inspection: API 598.
Finished Surface: Painting.
Concentric Butterfly Valve Product Range
Standards: API, ANSI, BS, DIN and JIS.
Body Material: Cast Iron, Carbon steel, Stainless steel, Bronze.
Normal diameter: 2"~48" (DN50~DN1200).
End connection: Wafer, Lug, Flanged.
Pressure range: CL150
Operation: Wrench, Gearbox, Electric.
Working temperature: -46℃~+200℃.
