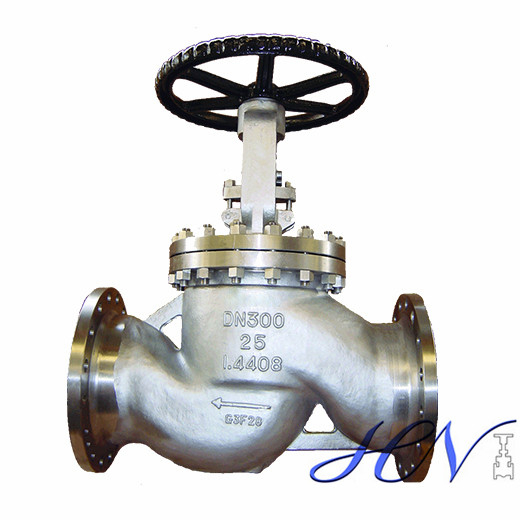

DIN Stainless Steel Globe Valve Detail
Design standard: DIN 3356.
Body material: 1.4408.
Nominal diameter: DN300.
Pressure: PN25.
End connection: RF.
Face to face: DIN 3202-F1.
Working temperature:-29℃~+425℃.
Mode of operation: Handwheel.
Test and inspection: API 598.
DIN Stainless Steel Globe Valve Product Range
Standards: API, ANSI, BS, DIN and JIS.
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2"~24" (DN15~DN600).
End connection: BW, Flanged
Pressure range: CL150~CL2500 (PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic.
Working temperature: -46℃~+560℃.
