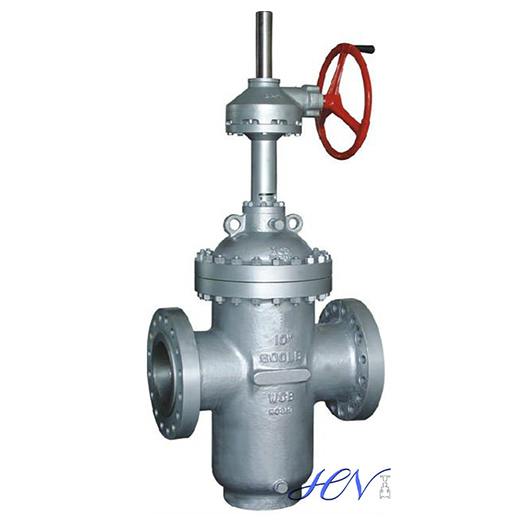

Gear Operated Cast Steel Parallel Slide Gate Valve Isolation Detail
Design standard: API 6D.
Body material: A216 WCB.
Nominal diameter: 10''.
Pressure: CL600.
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -46℃~+200℃.
Mode of operation: Gearbox.
Test and inspection: API 598.
Gear Operated Cast Steel Parallel Slide Gate Valve Isolation Product Range
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 2"~40" (DN50~DN1000).
End connection: BW, Flanged.
Pressure range: CL150~CL2500 (PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic,
Working temperature: -46℃~+425℃.
