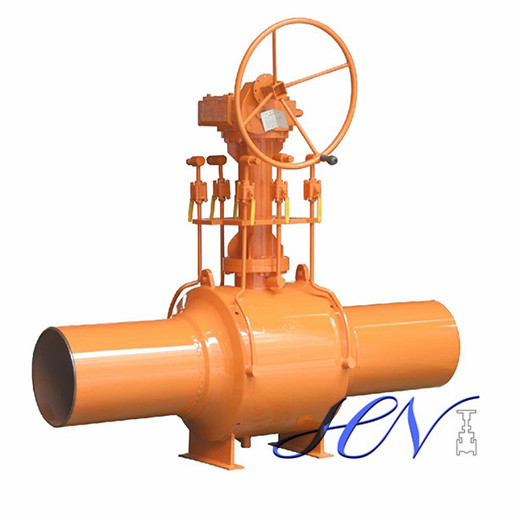

Gear Operated Manual Natural Gas Fully Welded Body Ball Valve


Gear Operated Fully Welded Body Ball Valve Detail

Design Standard: API 6D, ASME B16.34.
Body Material: ASTM A105.
Nominal Diameter: 24".
Pressure: CL600.
End Connection: Butt Welding.
Face to Face: ASME B16.10.
Working Temperature:-29℃~+200℃.
Mode of Operation: Gear Operated.
Test and Inspection: API 598.

Finished Surface: Painting.

Natural Gas Fully Welded Body Ball Valve Product Range

Standards: API, ANSI, BS, DIN and JIS.

Body Material: Low Temperature Carbon Steel, Carbon Steel,Stainless Steel,Alloy Steel etc,
Normal Diameter: 2"~60" (DN50~DN1500).
End Connection: BW, Flanged.
Pressure Range: CL150~CL2500(PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃~+200℃.
