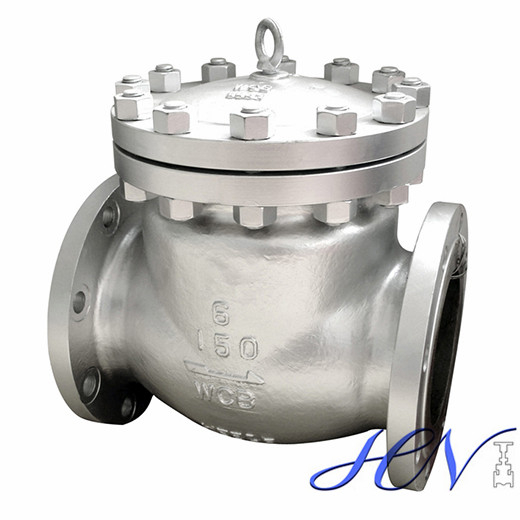

Carbon Steel Flanged Swing Check Valve Detail
Design Standard: API 6D, BS 1868.
Body Material: A216 WCB.
Nominal Diameter: 6''.
Pressure: CL150.
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+425℃.
Test and Inspection: API 598.
Finished Surface: Painting.
Carbon Steel Swing Check Valve Product Range
Standards: API, ANSI, BS, DIN and JIS.
Body Material: Low Temperature Carbon Steel, Carbon Steel, Stainless Steel.
Normal Diameter: 2"~60" (DN50~DN1500).
End Connection: BW, Flanged.
Pressure Range: CL150 LB~CL2500(PN16~PN420).
Working Temperature: -196℃~+600℃.
