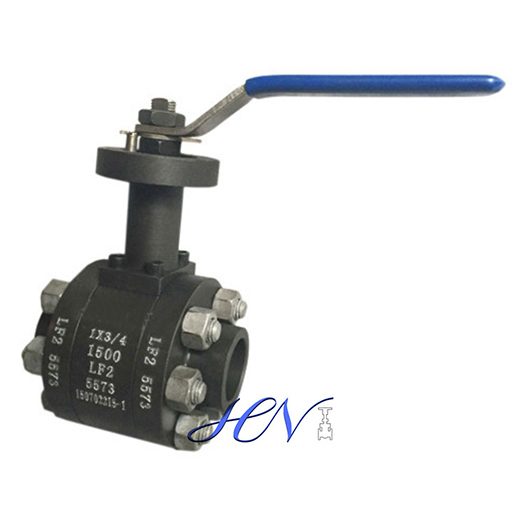

Low Temperature Stem Extended Floating Ball Valve Detail
Design standard: ASME B16.34.
Body material: A350 LF2.
Nominal diameter: 1"x3/4''.
End connection: Socket Welded.
End to end: ASME B16.10.
Working temperature: -46℃~+200℃.
Mode of operation: Lever.
Test and inspection: API 598.
Low Temperature Stem Extended Forged Floating Ball Valve Specifications / Fe
Reliable sealing performance and small torque;
Full bore and reduced bore;
Low temperature working condition;
Fire safe, anti-static and anti-blowout stem design;
Optional locking device;
Optional ISO 5211 top flange.
