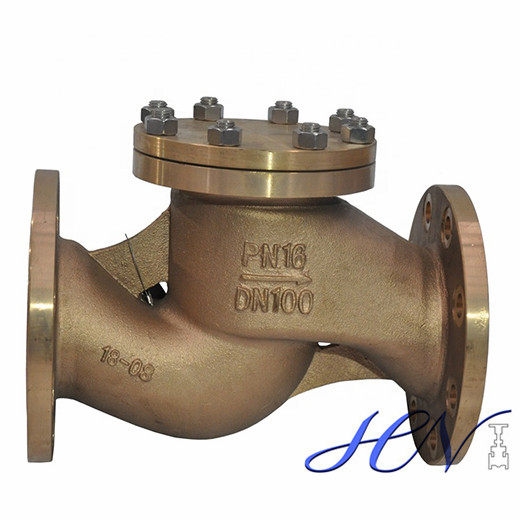

Marine Bronze Flanged Drain Piston Check Valve

Availability:
Quantity:

Marine Bronze Piston Check Valve Detail

Design standard: BS EN 12516-1.
Body material: B148 C95800.
Nominal diameter: DN100.
Pressure: PN16.
End connection: RF.
Face to face: DIN3202.
Working temperature: -29℃~+400℃.
Test and inspection: EN12266.1.

Bronze Flanged Piston Check Valve Product Range

Standards: API, ANSI, BS, DIN, JIS and GOST.

Body material: Low Temperature Carbon Steel, Carbon Steel, Stainless Steel, Bronze.
Normal diameter: 2"~20" (DN50~DN500).
End connection: BW, Flanged.
Pressure range: CL150~CL2500 (PN16~PN420).
Working temperature: -29℃~+400℃.
