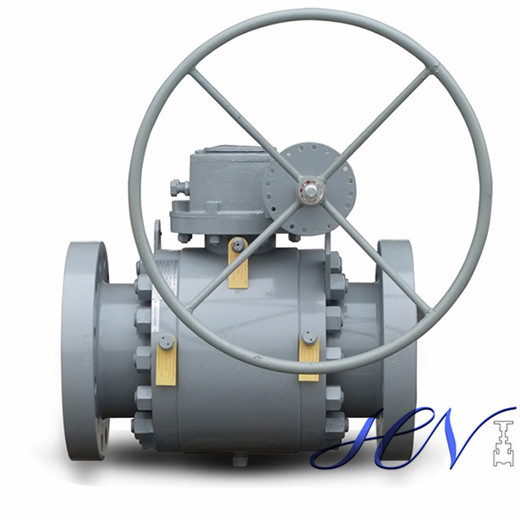

Metal Seat Forged Side Entry Trunnion Mounted Ball Valve Detail
Design Standard: API 6D.
Body Material: ASTM A105N.
Nominal Diameter: 8''.
Pressure: CL600.
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+200℃.
Mode of Operation: Gear Operated.
Test and Inspection: API 598.
Metal Seat Forged Side Entry Trunnion Mounted Ball Valve Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 2"~60" (DN50~DN1500).
End Connection: BW, Flanged.
Pressure Range: CL150~CL2500(PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃~+200℃.
