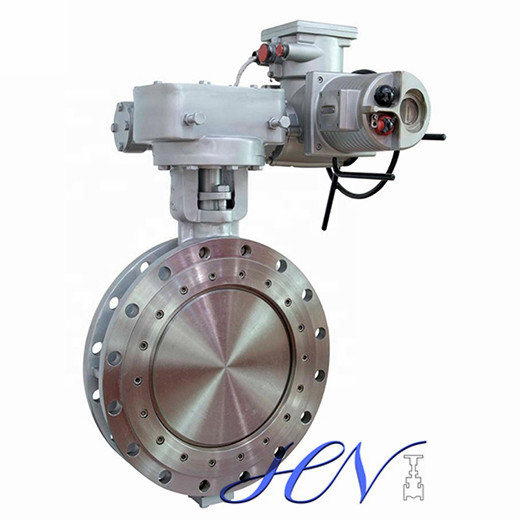

Flange Type Double Eccentric Butterfly Valve Detail
Design standard: API 609.
Body material: A351 CF8.
Nominal diameter: 12".
Pressure: CL600.
End connection: Flanged.
Face to face: ASME B16.10.
Working temperature: -29℃~+250℃.
Mode of operation: Motorized.
Test and inspection: API 598.
Flow Control Double Eccentric Butterfly Valve Product Range
Standards: API, ANSI, BS, DIN and JIS.
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 2"~120" (DN50~DN3000).
End connection: Wafer, Lug, Flanged.
Pressure range: CL150~CL600(PN16~PN100).
Operation: Wrench, Gearbox, Electric, Pneumatic
Working temperature: -46℃~+200℃.
