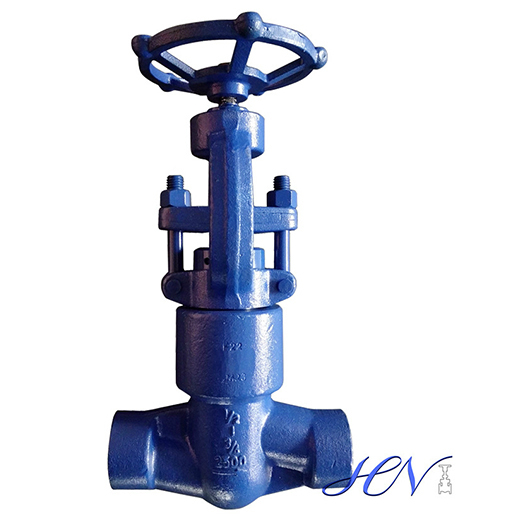

Pressure Seal Bonnet Forged Steel Socket Weld Globe Valve

Availability:
Quantity:

Pressure Seal Bonnet Forged Globe Valve Detail

Design standard: API 602.

Body material: ASTM A105N.

Nominal diameter: 1/2 x 3/4".

Pressure: CL2500.

End connection: SW.

Face to face: ASME B16.10.

Working temperature:-29℃~+425℃.

Mode of operation: Handwheel.

Test and inspection: API 598.

Finished Surface: Painting.

Forged Steel Globe Valve Product Range

Standards: API, ANSI, BS, DIN and JIS.

Body Material: Carbon steel, Stainless steel, Alloy steel.

Normal diameter: 1/2"~2" (DN15~DN50).

End connection: BW, NPT, SW, Flanged.

Pressure range: CL150~CL2500(PN10~PN420).

Operation: Handwheel, Electric, Gearbox.

Working temperature: -196℃~ +560℃.
