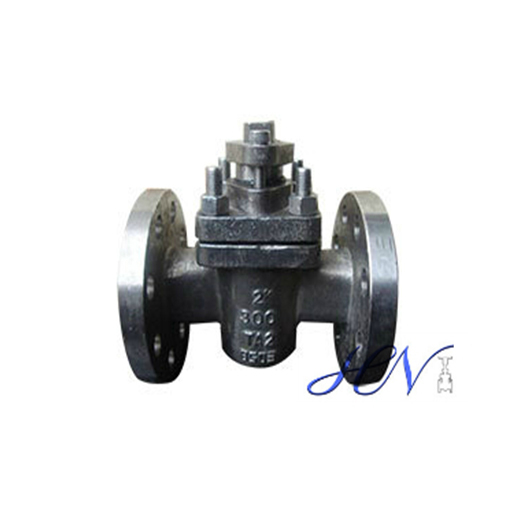

Titanium Alloy Steel Flanged Quarter Turn Plug Valve Detail
Design standard: API 599, API 6D.
Body material: TA2.
Nominal diameter: 2".
Pressure: CL300.
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃~+180℃.
Mode of operation: Wrench.
Test and inspection: API 598, API 6D.
Titanium Alloy Steel Flanged Quarter Turn Plug Valve Product Range
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2"~16" (DN15~DN400).
End connection: BW, Flanged.
Pressure range: CL150~CL600 (PN16~PN100).
Operation: Handwheel, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -29℃~+180℃.
