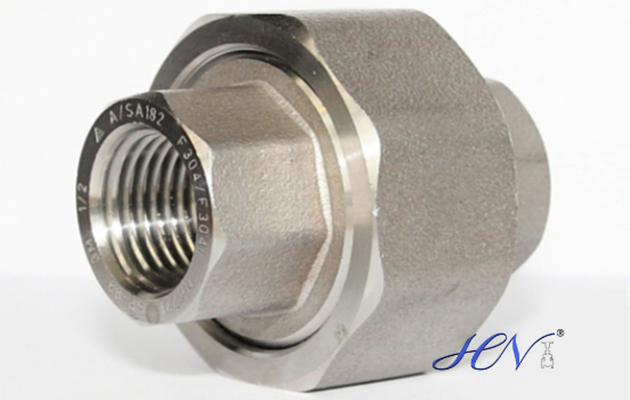

Union Detail
SIZE:1/8" - 4"
PRESSURE:Threaded End - 200 / 300 / 600 LBS
Socket-weld End -300 / 600 / 900 LBS
Butt Weld End - Sch40 / Sch80 / Sch160 / XXS
THREADED:NPT,BSPT, BSP,DIN2999,ISO228-1
SPECIFICATIONS
A:DIM.SPEC
ASME B16.11-2001 (REVISION OF ASME B16.11-1996)
MSS-SP - 79, 83, 95, 97
B: MATERIAL SPEC
ASTM A105N , A350 , A106, A312, A234, A403
ASTM A182 (F304 ,F304L, F316, F316L, F304H, F316H, F317L, F321
SIZE OF RAW MATERIAL : DIA 19-85 MM ROUND BAR
Standards: API, ANSI, BS, DIN and JIS.
