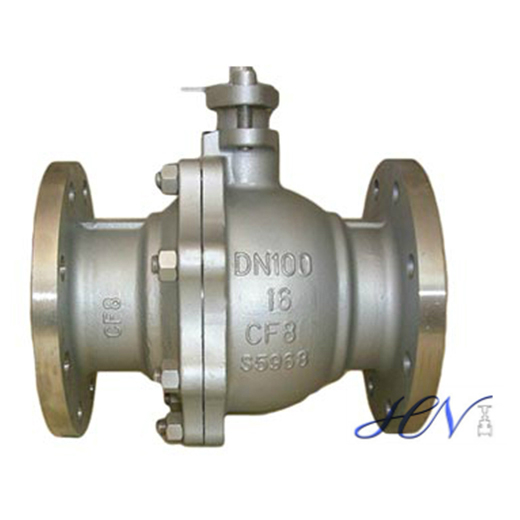

DIN Standard Flanged Floating Ball Valve Detail
Design standard: API 6D.
Body material: A351 CF8.
Nominal diameter: 4 inch (DN100).
Pressure: PN16 (CL150).
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃~+200℃.
Test and inspection: API 598.
DIN Standard Flanged Floating Ball Valve Product Range
Body Material: Carbon steel, Stainless steel, Alloy steel.Â
Normal diameter: 1/2"~6" (DN15~DN150).
End connection: BW, Flanged.
Pressure range: CL150~CL300 (PN16~PN40).
Operation: Lever, Gearbox, Electric.
Working temperature: -29℃~+200℃.
