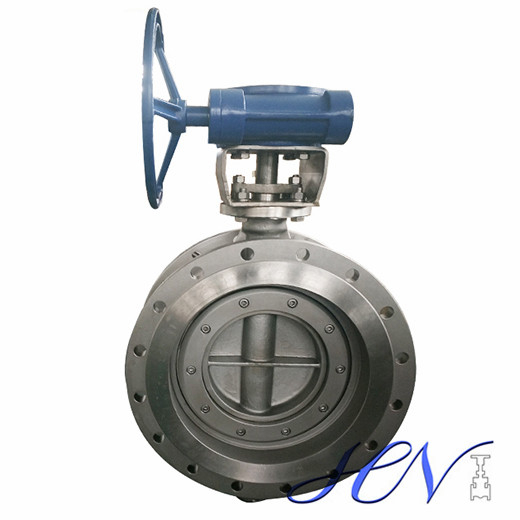

Flange Flow Control Tricentric Butterfly Valve Detail
Design standard: API 609.
Body material: A216 WCB.
Nominal diameter: 10".
Pressure: CL300.
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃~+250℃.
Mode of operation: Gear Operated.
Test and inspection: API 598.
Finished Surface: Painting.
Gear Type Carbon Steel Tricentric Butterfly Valve Product Range
Standards: API, ANSI, BS, DIN, JIS and GOST.
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 2"~120" (DN50~DN3000).
End connection: Wafer, Lug, Flanged,butt-welding
Pressure range: CL150~CL600(PN16~PN100).
Operation: Wrench, Gearbox, Electric, Pneumatic
Working temperature: -46℃~+200℃.
