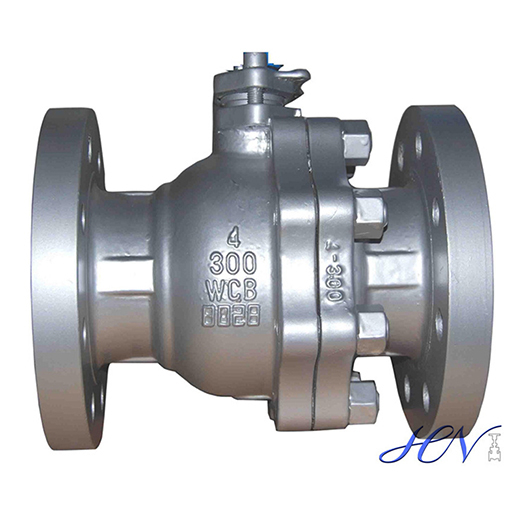

Soft Seated Cast Steel Flanged Floating Ball Valve Detail
Design standard: ASME B16.34.
Body material: A216 WCB.
Nominal diameter: 4''.
Pressure: CL300.
End connection: RF.
End to end: ASME B16.10.
Working temperature: -29℃~+200℃.
Mode of operation: Lever.
Test and inspection: API 598.
Soft Seated Cast Steel Flanged Floating Ball Valve Product Range
Body Material: Carbon steel, Stainless steel, Alloy steel.Â
Normal diameter: 1/2"~6" (DN15~DN150).
End connection: BW, Flanged.
Pressure range: CL150~CL300(PN16~PN40).
Operation: Lever, Gearbox, Electric.
Working temperature: -29℃~+200℃.
