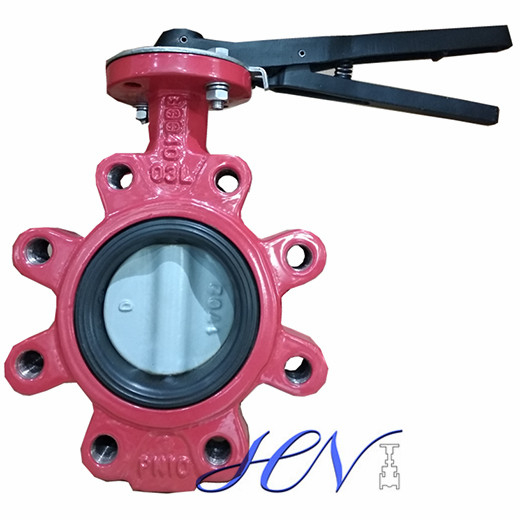

Cast Iron Centric Butterfly Valve Detail
Design standard: API 609.
Body material: GG25.
Nominal diameter: 4".
Pressure: CL150.
End connection: Lug.
Face to face: API 609.
Working temperature: -15℃~+140℃ .
Mode of operation: Wrench.
Test and inspection: API 598.
Finished Surface: Painting.
Cast Iron Centric Butterfly Valve Product Range
Standards: API, ANSI, BS, DIN and JIS.
Body Material: Cast Iron, Carbon steel, Stainless steel, Bronze.
Normal diameter: 2"~48" (DN50~DN1200).
End connection: Wafer, Lug, Flanged.
Pressure range: CL150
Operation: Wrench, Gearbox, Electric.
Working temperature: -46℃~+200℃.
