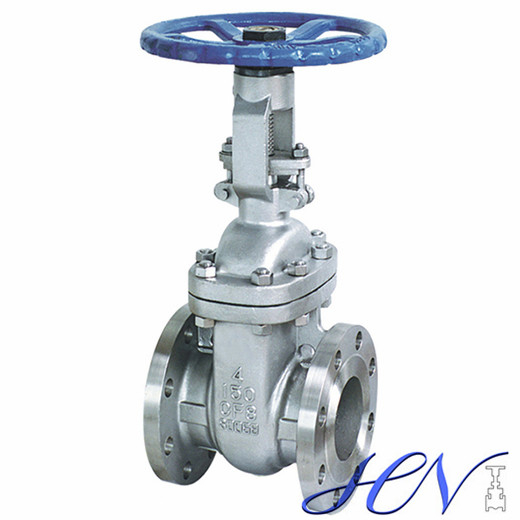

API Stainless Steel Gate Valve Detail
Design standard: API 600.
Body material:A351 CF8.
Nominal diameter: 4".
Pressure: CL150.
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -196℃~+600℃.
Mode of operation: Handwheel.
Test and inspection: API 598.
API Gate Valve Product Range
Standards: API, ANSI, BS, DIN and JIS.
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2"~60" (DN15~DN1500).
End connection: BW, Flanged.
Pressure range: CL150~CL2500(PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -46℃~+600℃.
