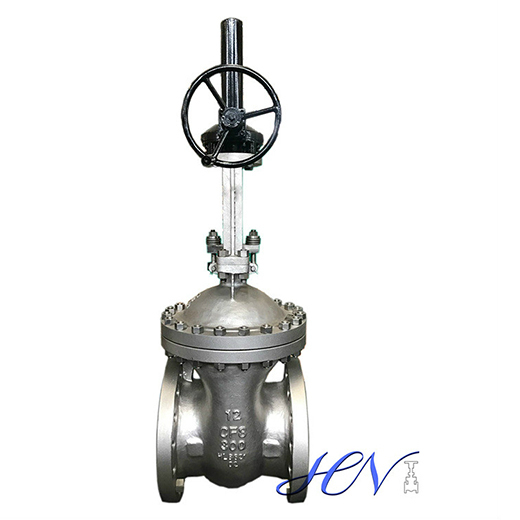

Stainless Steel Flanged Gear Operated Flexible Wedge Gate Valve

Quantity:

Stainless Steel Flanged Gear Operated Flexible Wedge Gate Valve Detail

Design standard: ASME B16.34.
Body material: A351 CF8.
Nominal diameter: 12".
Pressure: CL300.
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃~+425℃.
Mode of operation: Gearbox.
Test and inspection: API 598.

Stainless Steel Flanged Gear Operated Flexible Wedge Gate Valve Product Range

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2"~60" (DN15~DN1500).
End connection: BW, Flanged.
Pressure range: CL150~CL2500(PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -46℃~+560℃.
