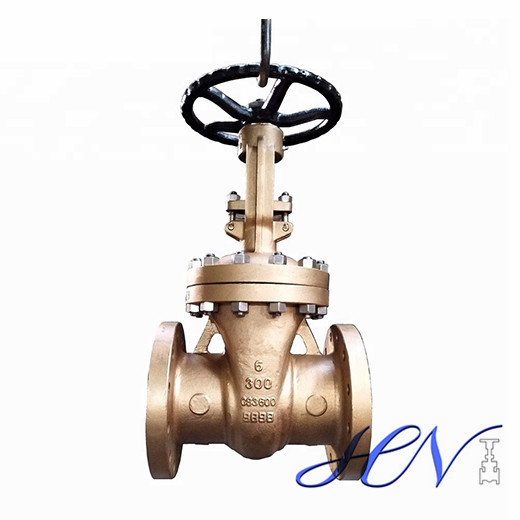

Bronze Bolted Bonnet Manual Flanged Marine Gate Valve

Availability:
Quantity:

Bronze Bolted Bonnet Gate Valve Detail

Design standard: API 600.
Body material: B62 C83600.
Nominal diameter: 6''.
Pressure: CL300.
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃~+200℃.
Mode of operation: Handwheel.
Test and inspection: API 598.

Manual Flanged Marine Gate Valve Gate Valve Product Range

Standards: API, ANSI, BS, DIN, JIS and GOST.

Body Material: Carbon steel, Stainless steel, Alloy steel, Bronze
Normal diameter: 1/2"~60" (DN15~DN1500).
End connection: BW, Flanged.
Pressure range: CL150~CL2500(PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -196℃~+600℃.
