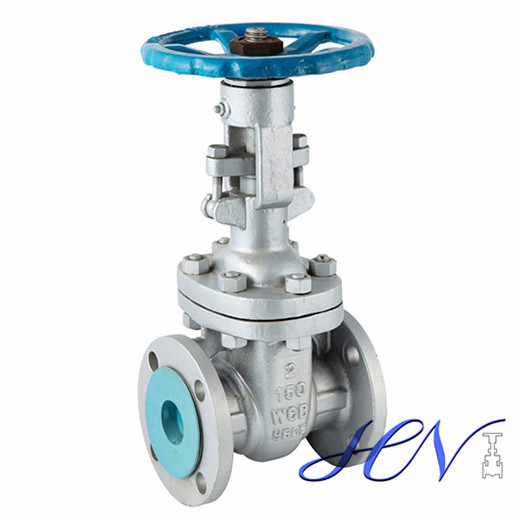

Bolted Bonnet Flanged Carbon Steel Gate Valve

Availability:
Quantity:

Bolted Bonnet Gate Valve Detail

Design standard: API 600.

Body material: A216 WCB.

Nominal diameter: 2".

Pressure: CL150.

End connection: RF.

Face to face: ASME B16.10.

Working temperature: -29℃~+425℃.

Mode of operation: Handwheel.

Test and inspection: API 598.

Finished Surface: Painting.

Bolted Bonnet Gate Valve Product Range

Standards: API, ANSI, BS, DIN and JIS.

Body Material: Carbon steel, Stainless steel, Alloy steel.

Normal diameter: 1/2"~60" (DN15~DN1500).

End connection: BW, Flanged.

Pressure range: CL150~CL2500(PN16~PN420).

Operation: Handwheel, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.

Working temperature: -46℃~+600℃.
