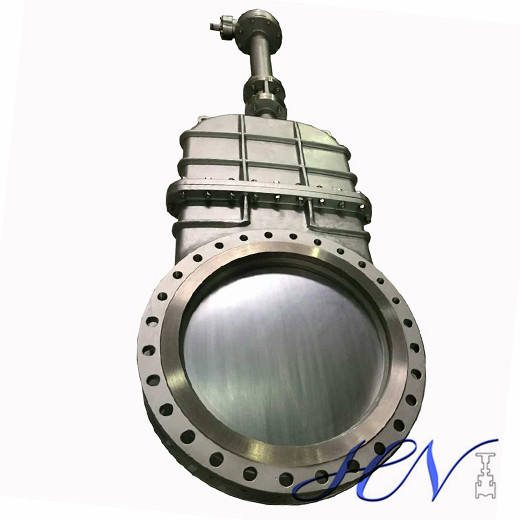

Gear Operated Carbon Steel Water Flanged Knife Gate Valve

Availability:
Quantity:

Knife Gate Valve Detail

Design standard: MSS SP-81.
Body material: A216 WCB.
Nominal diameter: 30''.
Pressure: CL150.
End connection: RF.
Face to face: MSS SP-81.
Working temperature: -29℃~+425℃.
Mode of operation: Gear Operated.
Test and inspection: MSS SP-81.

Finished Surface: Painting.

Knife Gate Valve Product Range

Standards: API, ANSI, BS, DIN and JIS.

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2"~60" (DN15~DN1500).
End connection: BW, Flanged.
Pressure range: CL150~CL2500(PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -196℃~+600℃.
