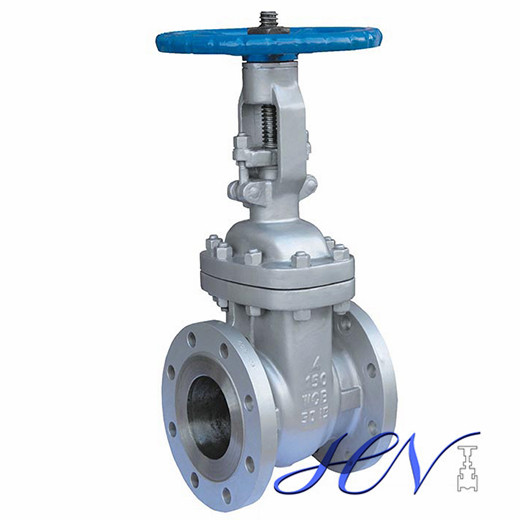

API Standard Carbon Steel Isolation Wedge Gate Valve

Availability:
Quantity:

API Standard Gate Valve Detail

Design standard: API 600.
Body material: A216 WCB.
Nominal diameter: 4''.
Pressure: CL150.
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃~+425℃.
Mode of operation: Handwheel.
Test and inspection: API 598.

Finished Surface: Painting

API Standard Gate Valve Product Range

Standards: API, ANSI, BS, DIN and JIS.

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2"~60" (DN15~DN1500).
End connection: BW, Flanged.
Pressure range: CL150~CL2500(PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic, Electro hydraulic actutor, Gas over oil actuator.
Working temperature: -196℃~+600℃.
