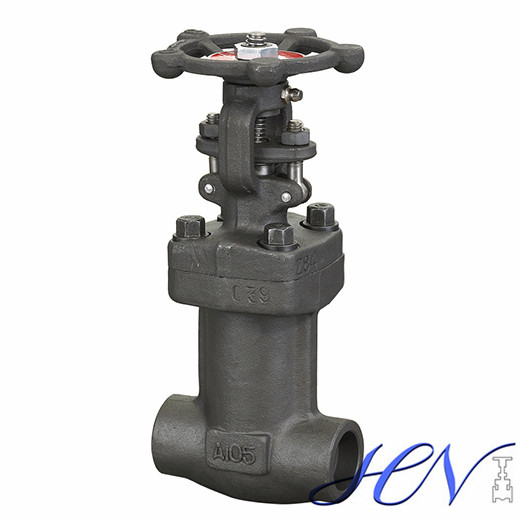

Bellow Seal Forged Steel Rising Stem Socket Welded Gate Valve

Availability:
Quantity:

Bellow Seal Rising Stem Gate Valve Detail

Design standard: API 602.
Body material: ASTM A105N.
Nominal diameter: 1/2''.
Pressure: CL800.
End connection: SW.
Face to face: ASME B16.10.
Working temperature:-29℃~+425℃.

Mode of operation: Handwheel.

Test and inspection: API 598.

Finished Surface: Nitriding.

Rising Stem Socket Welded Gate Valve Product Range

Standards: API, ANSI, BS, DIN, JIS and GOST.

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2"~2" (DN15~DN50).
End connection: BW, Flanged, SW, NPT
Pressure range: CL150~CL2500(PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic
Working temperature: -197℃~+560℃.
