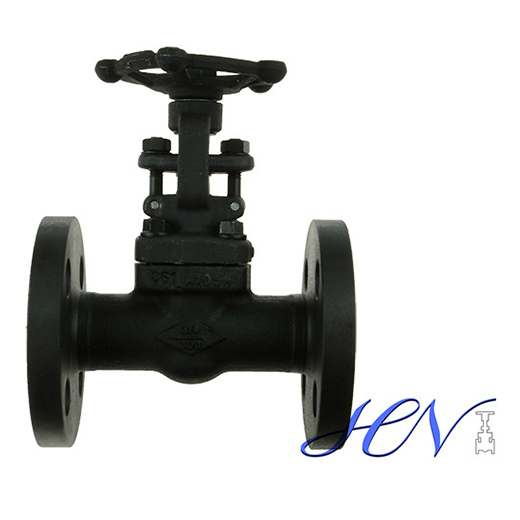

Integral Flanged Carbon Steel Gas Solid Gate Valve


Integral Flanged Gate Valve Detail

Design standard: API 602.
Body material: ASTM A105N.
Nominal diameter: 3/4''.
Pressure: CL300.
End connection: Flanged.
Face to face: ASME B16.10.
Working temperature:-29℃~+425℃.

Mode of operation: Handwheel.

Test and inspection: API 598.

Finished Surface: Nitriding.

Integral Flanged Gate Valve Product Range

Standards: API, ANSI, BS, DIN and JIS.

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2"~2" (DN15~DN50).
End connection: BW, Flanged, SW, NPT
Pressure range: CL150~CL2500(PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic
Working temperature: -197℃~+560℃.
