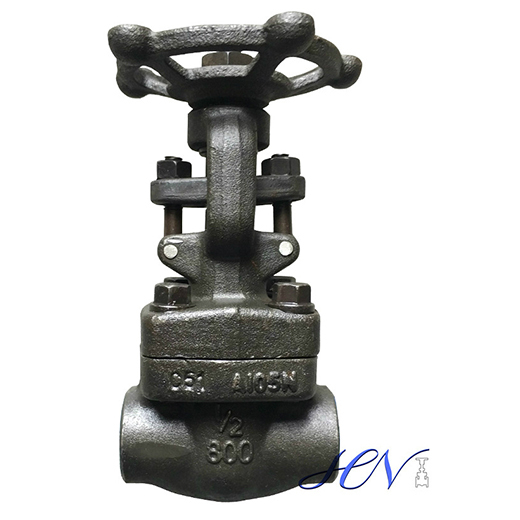

Forged Socket Welding Gate Valve Detail
Design standard: API 602.
Body material: ASTM A105N.
Nominal diameter: 1/2''.
Pressure: CL800.
End connection: SW.
Face to face: ASME B16.10.
Working temperature:-29℃~+425℃.
Mode of operation: Handwheel.
Test and inspection: API 598.
Finished Surface: Nitriding.
Forged Gate Valve Product Range
Standards: API, ANSI, BS, DIN and JIS.
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2"~2" (DN15~DN50).
End connection: BW, Flanged, SW, NPT
Pressure range: CL150~CL2500(PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic
Working temperature: -197℃~+560℃.
