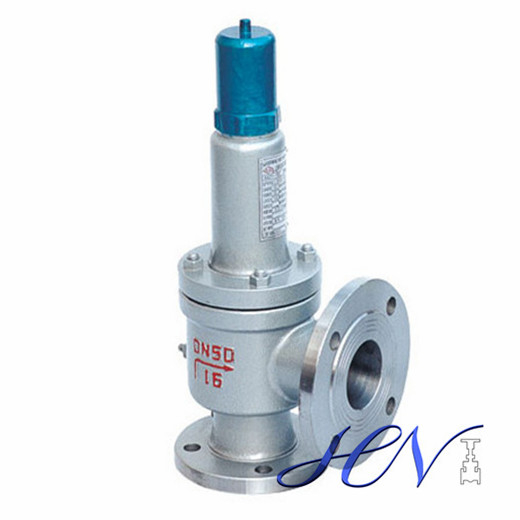

Full Lift Spring Loaded Stainless Steel Pressure Safety Relief Valve

Quantity:

Stainless Steel Pressure Safety Relief Valve Detail

Body material: A351 CF8.
Inlet Size: DN50, PN20.

Outlet Size: DN40, PN16
End connection: RF.
End to end: ASME B16.10.
Working temperature: -29℃~+200℃.
Mode of operation: Self Acting.
Test and inspection: API 598.

Stainless Steel Pressure Safety Relief Valve Product Range

Standards: API, ANSI, BS, DIN and JIS.

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2"~6" (DN15~DN150).
End connection: BW, Flanged, Threaded
Pressure range: CL150~CL600(PN16~PN100).
Operation: Lever, Self Acting.
Working temperature: -29℃~+425℃.
