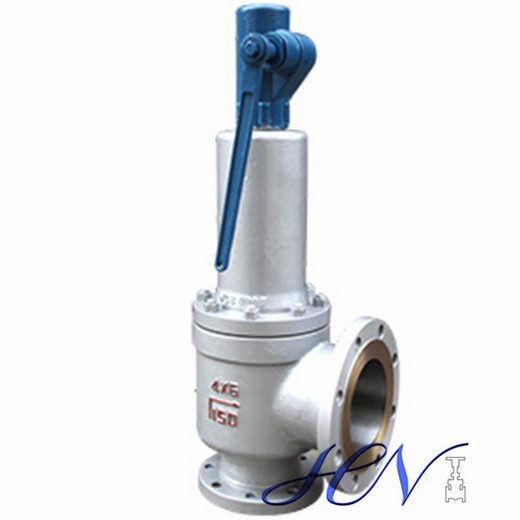

Full Lift Pressure Safety Relief Valve Detail
Body material: A351 CF8.
Inlet Size: 4'', CL300.
Outlet Size: 6'', CL150.
End connection: RF.
End to end: ASME B16.10.
Working temperature: -29℃~+200℃.
Mode of operation: Lever.
Test and inspection: API 598.
Pressure Safety Relief Valve Product Range
Standards: API, ANSI, BS, DIN and JIS.
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2"~6" (DN15~DN150).
End connection: BW, Flanged, Threaded
Pressure range: CL150~CL600(PN16~PN100).
Operation: Lever, Self Acting.
Working temperature: -29℃~+425℃.
