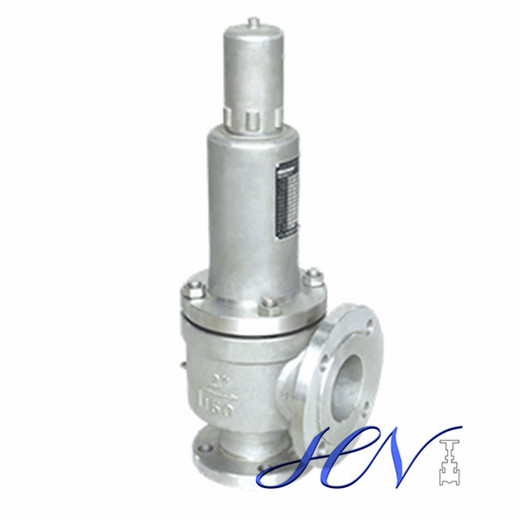

Bellows Pressure Safety Relief Valve Detail
Body material: A216 WCB.
Inlet Size: 2'', CL300.
Outlet Size: 1 1/2'', CL150.
End connection: RF.
End to end: ASME B16.10.
Working temperature: -29℃~+200℃.
Mode of operation: Self Acting.
Test and inspection: API 598.
Finished Surface: Painting.
Bellows Pressure Safety Relief Valve Product Range
Standards: API, ANSI, BS, DIN and JIS.
Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2"~6" (DN15~DN150).
End connection: BW, Flanged, Threaded
Pressure range: CL150~CL600(PN16~PN100).
Operation: Lever, Self Acting.
Working temperature: -29℃~+425℃.
